TYPE: downlight
PROTECTION: IP20
MARK: CE
MATERIAL: Aluminium
COLOUR VERSIONS: white / black or white / white
ADJUSTABLE: yes, rotating - and pivotally
LAMPS: 1x max.50W GU10 230V PAR 16 (halogen or LED retrofit lamps)
LAMS RECESSED: yes, lamp recessed 20 mm
Mains voltage: 230V
DIMENSIONS:
L x W (mm): 106x106
FRAME SIZE: 15mm
CUT OUT (mm): 95x95mm
DEPTH (mm): 110
Mounting instructions

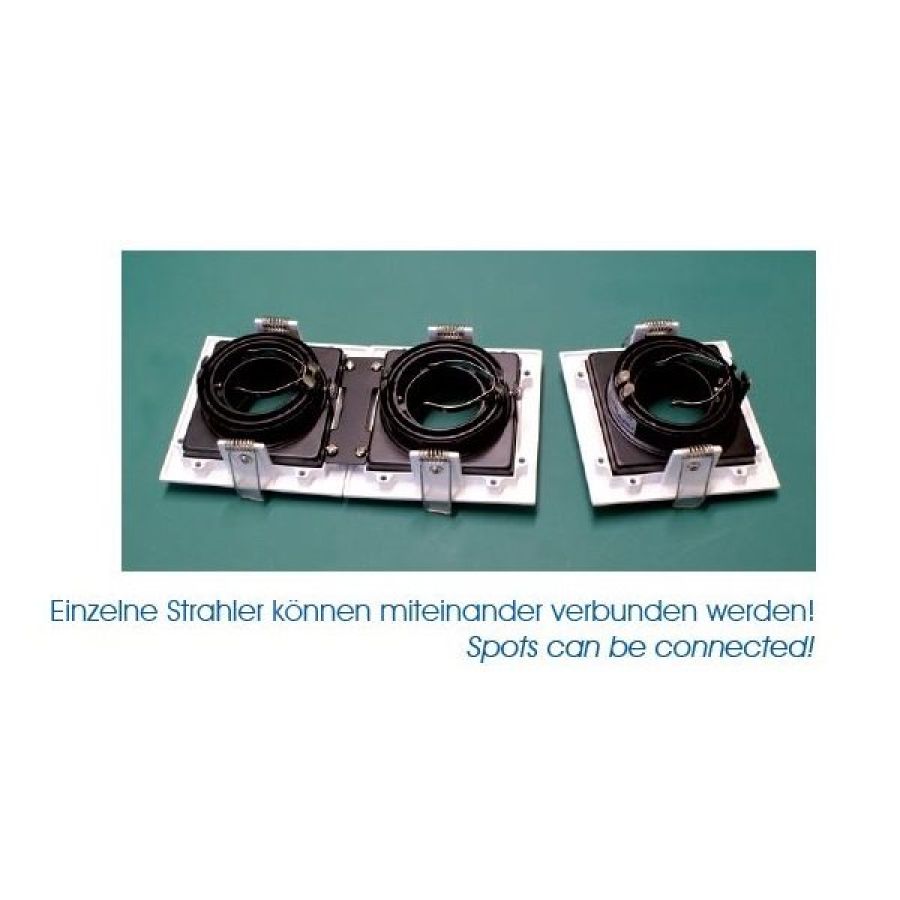

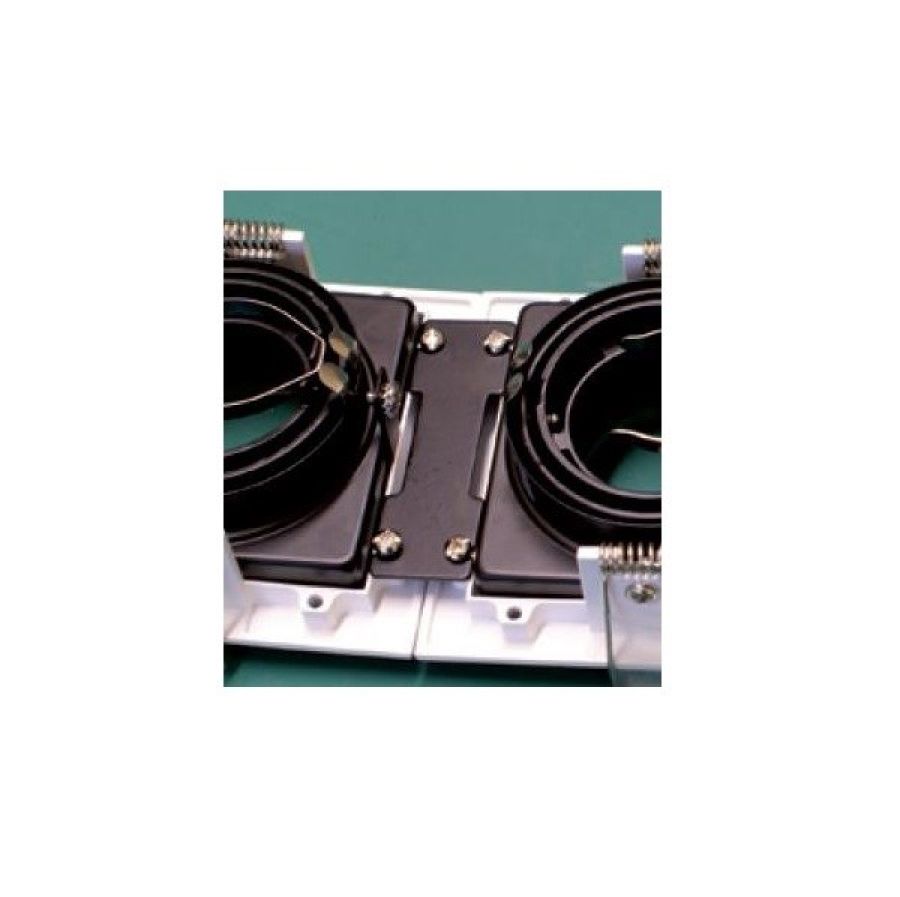

Individual spotlights can be connected:
1 spotlight LxW: 106x106mm, cut out: 95x95mm
2 spotlights LxW: 212x106mm, cut out: 200x95mm
3 spotlights LxW: 318x106mm, cut out: 305x95mm
4 spotlights LxW: 212x12mm, cut out: 200x200mm
Energy class: This lamp is suitable for lamps of energy classes: A++ to E
The energy efficiency class is specified on a scale of A ++ (very efficient) to E (less efficient).
Lamp is changeable.
