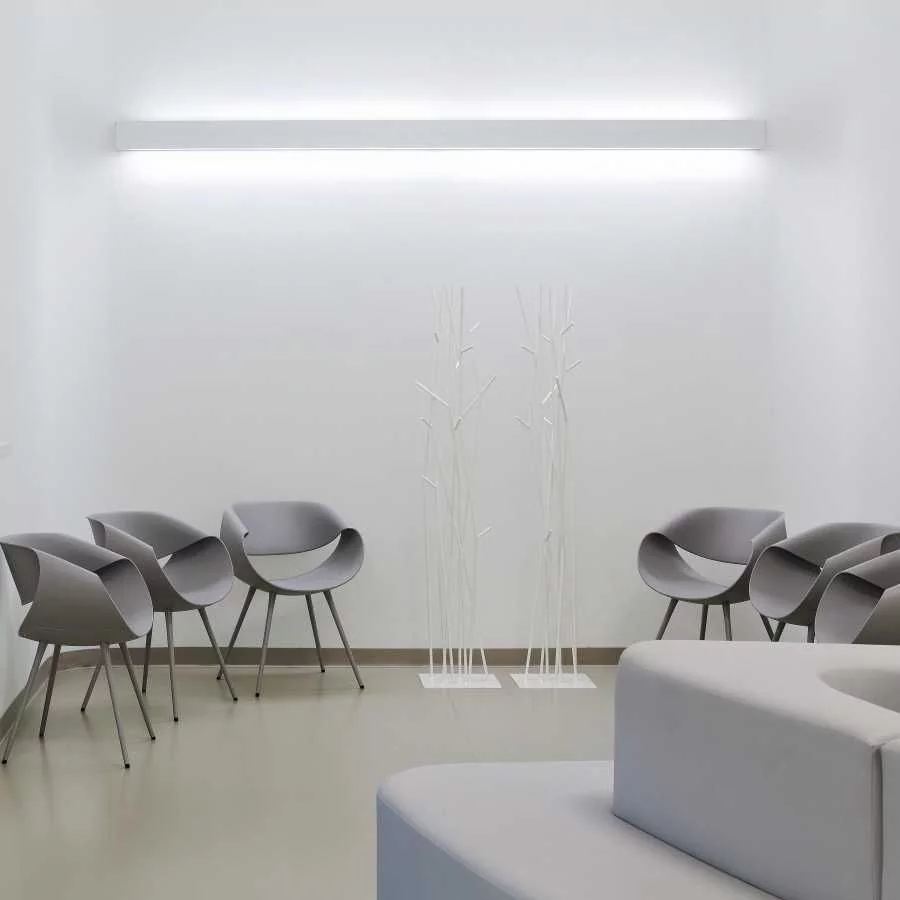

Linear light for the wall with profile luminaire p.forty: up/down
These straight-line profile luminaires from Planlicht are made of aluminium profile and are used for modern lighting. State-of-the-art LED technology and diffusers ensure homogeneous glare-free illumination. The luminaire is mounted on the wall using included wall brackets and directs the LED light upwards and downwards. The flexible profile luminaire p.forty is available with a housing dimension of W:44 x H:82 mm and flush diffuser as surface-mounted, wall-mounted, pendant and recessed luminaire, also dimmable in DALI.
The linear luminaire body is matt powder-coated and available in silver, white and black.
Wall mounting is by means of an included wall canopy in the middle in white (WxH: 418x48 mm)
Complete lamp consisting of: housing, profile cover (polycarbonate satiné), LED technology, end caps, wall mounting bracket and mounting accessories.
Light output: LED directly upwards and downwards
Wall lamp is suitable: workplace lighting - office, lighting in living areas, open plan lighting, study, kitchen, bathroom - mirror lamp
Colours:
- silver
- white
- black
p.forty lengths:
L: 574mm
L: 854mm
L: 1134mm
L: 1414mm
L: 1694mm
L: 2254mm (on request)
L: 2818mm
L: 3378mm (on request)
L: 4498mm (on request)
» More articles from planlicht
All luminairs from PLANLICHT can be ordered from the shop! If you should not find the desired article in our assortment, please send us an inquiry
TYPE: Wall lamp
MANUFACTURER: Planlicht
MATERIAL: Aluminium
COVER: satin diffuser Polycarbonate LED
PROFILE COLOURS: silver, white or black powder-coated fine structure matt
HEIGHT: 82mm
WIDTH: 44mm
WALL DISTANCE: 16mm
LIGHT SOURCE: LED
LIGHT COLOR: warm white 3000K or neutral white 4000K
LIGHT DISTRIBUTION: upwards and downwards
COLOR INDEX: Ra>80
LIFE TIME: 60.000h
DIMMABLE: optionally dimmable via DALI/switchDIM
Switch/DIM dimmable: digital ballast (dimming is by push, not included in delivery, no additional dimmer necessary!) Attention: for dimming it is absolutely necessary to use a 4th installation wire!
POWER: not dimmable
L: 574mm / power: 14,5W / luminous flux: 1872lm
L: 854mm / power: 21W / luminous flux: 2826lm
L: 1134mm / power: 26W / luminous flux: 3816lm
L: 1414mm / power: 32W / luminous flux: 4750lm
L: 1694mm / power: 38W / luminous flux: 5604lm
POWER: dimmable
L: 574mm / power: 25W / luminous flux: 3211lm
L: 854mm / power: 36W / luminous flux: 4884lm
L: 1134mm / power: 48W / luminous flux: 6692lm
L: 1414mm / power: 59W / luminous flux: 8277lm
L: 1694mm / power: 69W / luminous flux: 9510lm
PROTECTION TYPE: IP20
PROTECTION CLASS: I
APPROVAL MARK: CE
Energy efficiency class: A+
LED is not replaceable.
