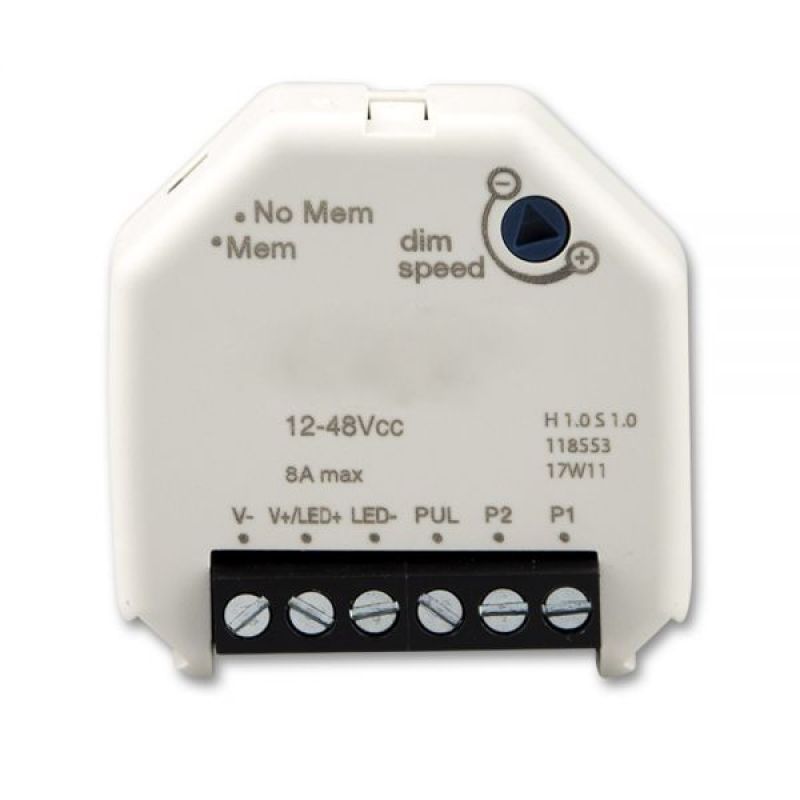

Universal Push PWM Dimmer for LED Spots / Lamps
- Dimmer with pulse width modulation (PWM), specially designed for controlling LED strips, bulbs, spots 12-48 VDC up to a maximum of 8 A.
- Placed between transformer and lamp
- Maximum load 96W at 12V and 192W at 24V
- Dimming via push-button with 230V and 12/24V possible
- For installation in switch housing behind the push-button or in junction box.
- Can be used and controlled with standard flush-mounted push-buttons.
- Lower dimming range can be limited "min": for setting the lower dimming limit (1% "+" ~ 60% "-").
- Dimming speed adjustable "dim speed": for setting the dimming speed between 3 sec "+" and 10 sec "-" (from 0 to 100%).
- Optional memory function for last setting.
Material: plastic/white

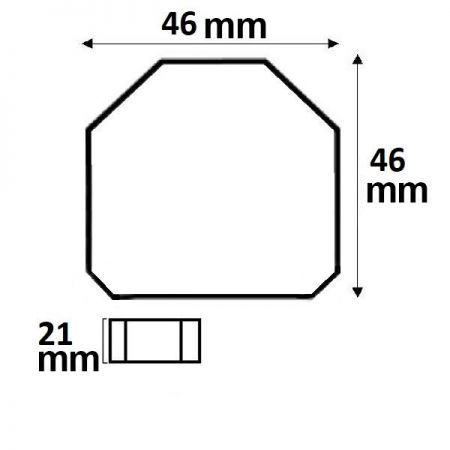

Length: 46mm
Width: 46mm
Height: 21mm
Rated voltage/current: 12-48V DC
Ambient temperature: -20° to 50
Protection class: IP20
Important: LED lamps must be marked as dimmable!!!
Installation
1 - Switch off the power.

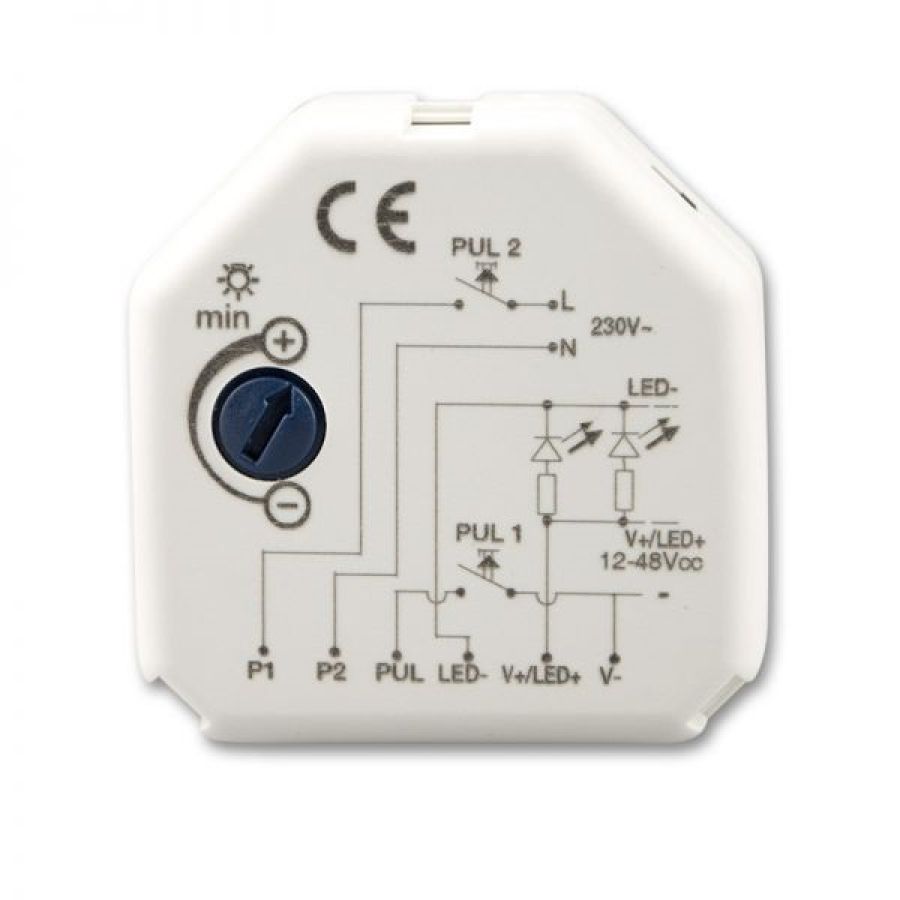

2 - Install the dimmer according to the wiring diagram.
3 - Make sure that the lamps are connected and switch voltage to the installation.
4 - Switch on the lamps by pressing briefly and then press and hold until the lower limit of the dimming power is reached. If this corresponds to the desired output, leave the setting as it is. If a higher value is desired, turn the ""%" potentiometer slightly to the right until a suitable lower limit is reached.
Function
By pressing briefly, the lamps are switched on with maximum power (switch on NO MEM) or the same power as when they were last switched off (switch on NO MEM).
A long press dims the lamps. To change the dimming direction (increasing or decreasing), release the button and press and hold again.
To switch off the lamps, press briefly again.
