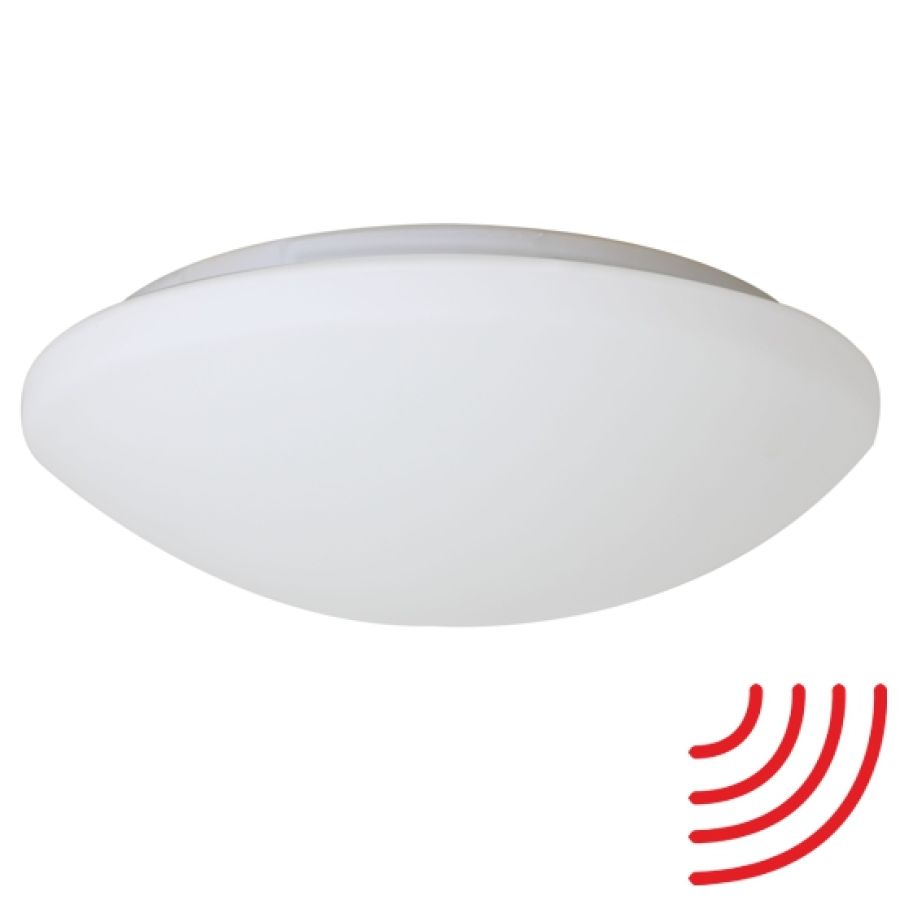

Sensor light OL1 with motion detector
More comfort through integrated sensor
You have both hands full and cannot reach the light switch? Then simply switch to our wall and ceiling lights with integrated high-frequency sensor. The special high-frequency sensor is invisibly hidden behind the glass. No matter if wall or ceiling, the sensor works with both types of mounting and is especially suitable for rooms with short dwell times. An even higher cost saving and more comfort by automatic switching on and off of the light. The sensor can be adapted to individual requirements: the light duration ranges from 8 seconds to 12 minutes.
- 360° detection angle and high range of up to 9m radius.
- max.60W/E27 (light source changable)
- Sensor: HF technology 5.8 GHz
- Sensor not visible under the silk matt glass cover.
- Mounting friendly glass attachment with bayonet lock.
Suitable for: Bathroom, toilet, storage room, hallway, staircase, house entrance, cellar etc.
Electrical data
Socket: 1x E27
Power: max. 60W
Light emission: Direct
Supply voltage: 220 - 240V AC
Luminaire connection: Power supply: terminal 2-pole, max. 2.5mm²
Sensor: RF sensor 5.8GHz CW, ISM band
Range: up to 9m radius at 2.5m to 3.5m mounting height
Angle of coverage: 360°
Switch-off delay: 8 sec to 12 min
Brightness: 2 - 2000 Lux
Housing data
Material Housing: Plastic (PMMA)
Material cover: Opal glass satin matt
Closure type: bayonet
Protection class: IP20
Protection class: SK II - Insulated
Mark of conformity: CE
Temperature range: -15°C to +70°C
Dimensions
Øxh 280 x 110mm
Ød 240mm
